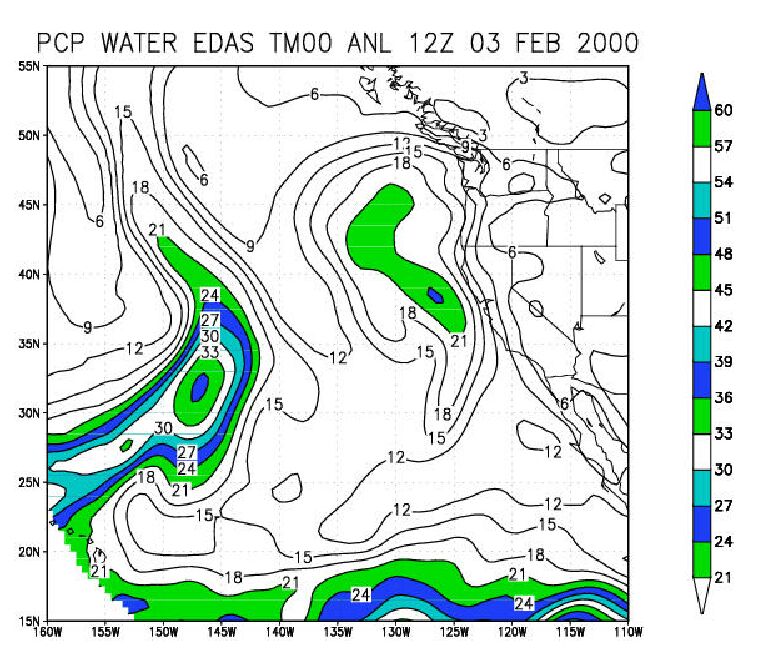

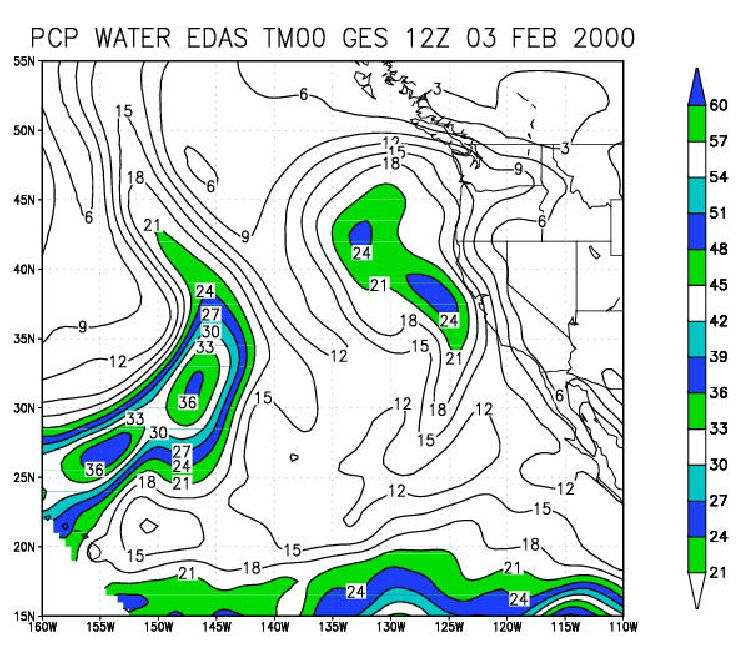

Figure 8: Top : EDAS first guess (left) and analysis (right) of total column precipitable water (mm) from the operational Eta-32 valid 1200 UTC 3 February 2000

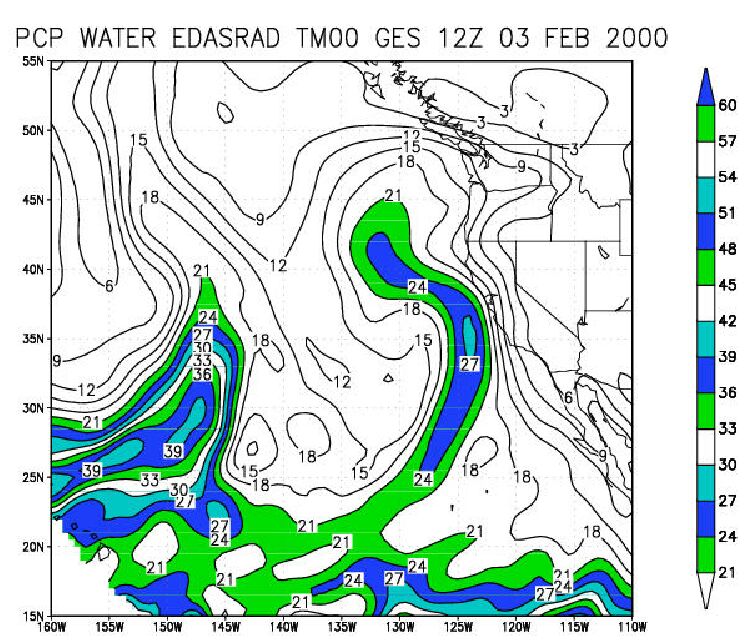

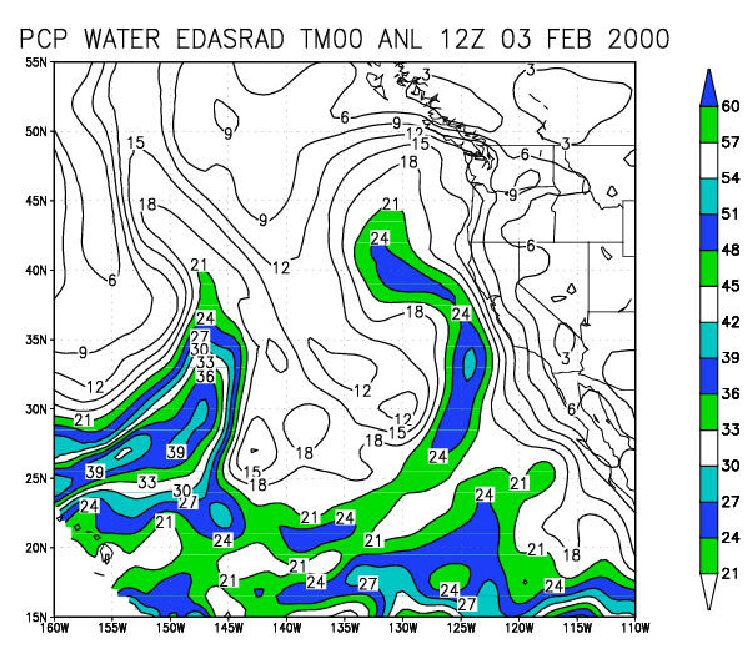

Bottom : EDAS first guess (left) and analysis (right) of total column precipitable water (mm) from the experimental Eta-32 with assimilation of satellite radiances valid 1200 UTC 3 February 2000
