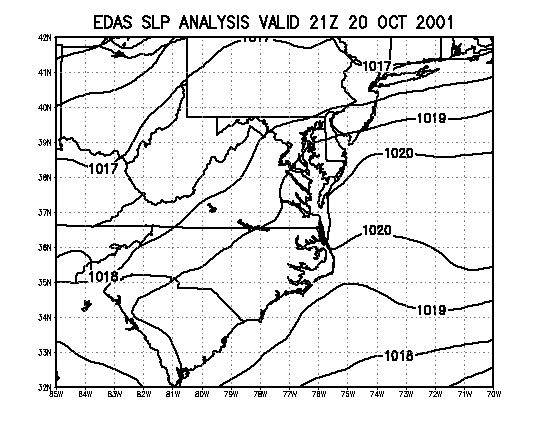

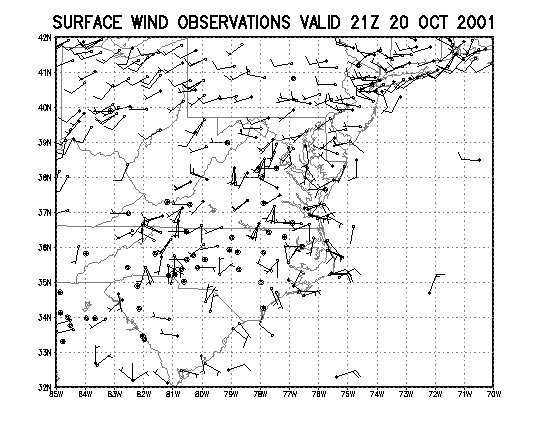

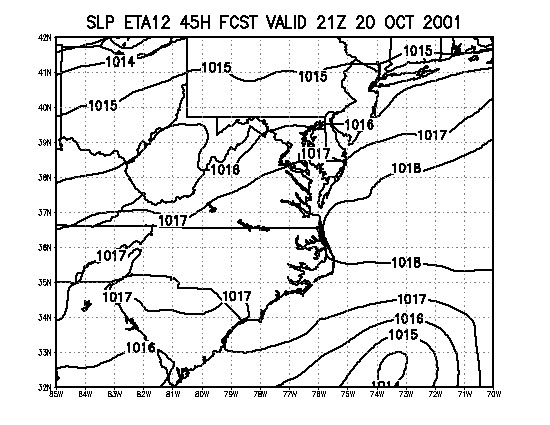

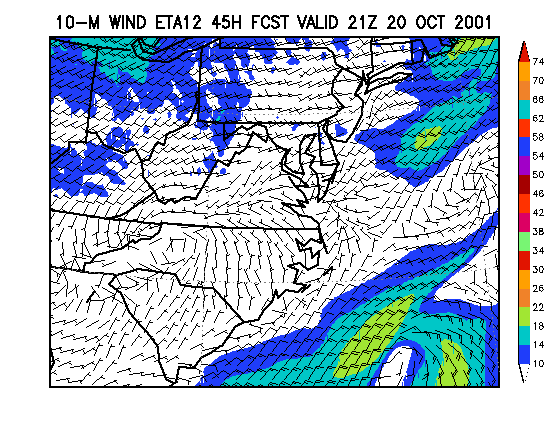

Figure 6.6: Top row: 45-h forecast of sea level pressure (mb) valid at 2100 UTC 20 October 2001 from the operational Eta-22 (left) and the Eta-12 (middle), EDAS sea level pressure analysis valid 21Z 20 October 2001 (right) ; Bottom row : (left and middle) same as top row, but for 10-m wind above ground level (kts), Observed surface observations at 2100 UTC 20 October 2001 (right)
