NCEP Data Assimilation

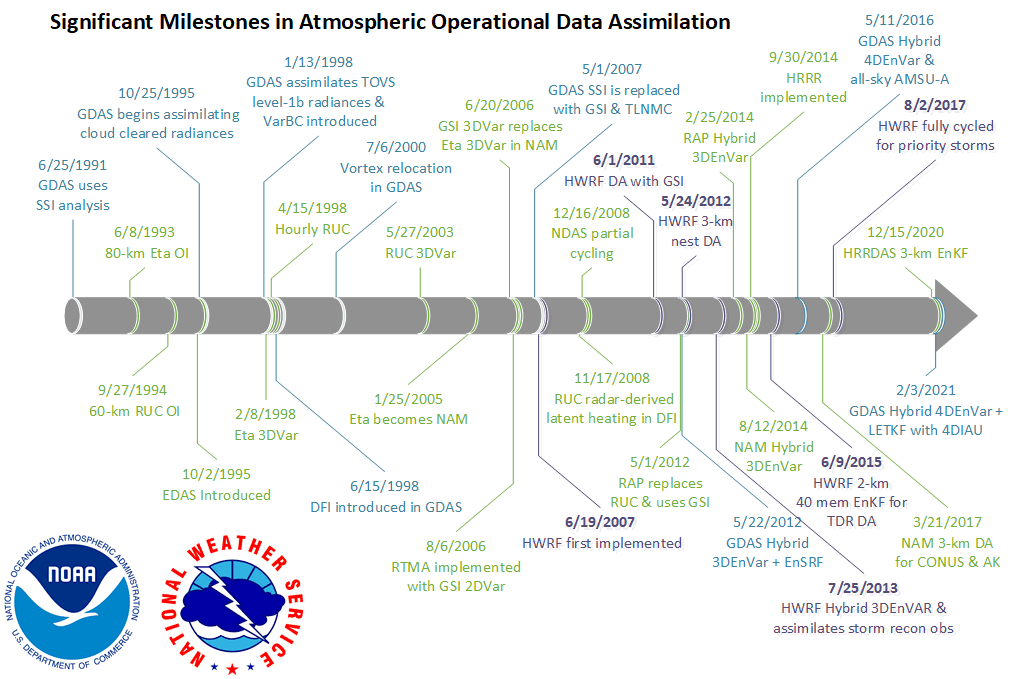

Above: 30 years of Data Assimilation Progress: Timeline of significant milestones
in NCEP’s Operational Global and Regional Atmospheric Data Assimilation from 1991-2021.
1. INTRODUCTION/OVERVIEW/HISTORY
The backbone of NCEP’s data assimilation effort is the Gridpoint Statistical Interpolation (GSI),
originally developed as a three-dimensional variational data assimilation (3DVAR) analysis system, which was
implemented in the Global Data Assimilation System/Global Forecast System (GDAS/GFS) in May 2007 (Kleist et al., 2009).
The GSI is an extension of the Spectral Statistical Interpolation (SSI) analysis/assimilation system which was
first implemented into the NCEP GDAS/GFS in June 1991 (Derber et al., 1991). The use of the SSI in the GDAS/GFS
led to improved model performance over the previously used optimum interpolation scheme due to many innovations,
including the ability to use observations which are different from the model and analysis variables (satellite
measure radiances (Derber and Wu 1998), total precipitable water, etc.), the analysis variables being different
than the model variables and the use of all observations at once allowing a better dynamical constraint between
wind and mass fields.
The GSI was developed
at the Environmental Modeling Center at NCEP as part of an effort to create a more unified, robust, and efficient
analysis scheme. The key aspect of the GSI is that it formulates the analysis in model grid space, which makes it
straightforward for this single analysis system to be used across a broad range of applications, including both
global and regional modeling systems and domains. In addition to its use in the GDAS/GFS, versions of the GSI are
used in operational NCEP mesoscale and convective-resolving guidance systems such as the Rapid Refresh (RAP), High
Resolution Rapid Refresh (HRRR), North American Mesoscale (NAM), NCEP’s real-time analysis systems (RTMA, URMA, RU-RTMA),
and NCEP’s Hurricane modeling systems (HWRF). The GSI application in the GDAS/GFS includes the use of a Tangent
Linear Normal Mode Constraint (TLNMC, Kleist(2009)) to reduce non-physical noise in the analysis system.
Many additional enhancements
to the GSI analysis system have been made over the years. For example, in 2016 an upgrade was made in the GDAS with
the replacement of the 3D Hybrid Ensemble-Variational to 4D Hybrid Ensemble-Variational Data Assimilation System.
With this extension, 4D analysis increments at prescribed times are constructed through linear combinations of 4D
ensemble perturbations. Also added to the GSI system were improved observational quality control (variational
and platform specific) algorithms, the inclusion of additional observations (new satellite radiances and extensions
to all-sky assimilation), more aircraft observations (with bias correction), GPS radio occultation observations and
wind estimates from satellites, along with many other enhancements.
In 2016
an upgrade was made in the GDAS with the replacement of the 3D Hybrid Ensemble-Variational
to a 4D Hybrid Ensemble-Variational Data Assimilation System. The 4-D increments are constructed by
computing the best combination of 4-D ensemble perturbations. The weights for ensemble members are
kept constant throughout the assimilation window, and the GDAS 4D-Hybrid uses uses 2 outer iterations
with 50 and 150 inner iterations in those 2 outer iterations, with variational quality control
turned on in every iteration. Tangent Linear Normal Mode Constraint (TLNMC) and Digital Filter
Initialization (DFI) are used to constrain the analysis increment while additive error inflation
is removed. Also, ozone cross covariances are in the 4D-Hybrid. Localization is recued to 50 percent
in the troposphere and the weights for static and ensemble are kept at 12.5 percent and 87.5 percent,
respectively.
More recent data assimilation changes included in NCEP GDAS/GFS upgrades are:
- In
the 2017 GDAS/GFS upgrade the Near
Sea-Surface Temperature (NSST)
Analysis was implemented to replace Real-Time Global SST (RTG_SST), to provide more realistic ocean boundary conditions.
- In
the 2019 GDAS/GFS upgrade:
- Upgrade
specific humidity perturbation and statistics physics tendency perturbation with new parameter
settings in the ensemble forecast for prescribing background errors.
- Remove
digital filter and tropical cyclone vortex relocation
- Increase
the horizontal resolution of the ensemble part of the hybrid data assimilation from 35 km to 25 km
- Update the
Near Sea Surface Temperature scheme to a) apply Sea Surface Temperature climatology tendency
to the foundation temperature and, b) reduce background error correlation length from 450~800 km down to 100 km.
- In
the 2021 GDAS/GFS upgrade:
- Spinning
up an offline land model with observed precipitation in the Global Land Data Assimilation System to provide improved
land initial conditions.
- Replacing
the Ensemble Square Root Filter with the Local Ensemble Kalman Filter (LETKF) that offers
a model space localization and linearized observation operators.
- Employing
the 4-Dimensional Incremental Analysis Update (4DIAU) technique.
- Adopting a
stochastic kinetic energy backscattering (SKEB) perturbation technique in the ensemble
forecast component used to prescribe background error covariances.
- Updating
variational quality control.
- Applying
the Hilbert curve to aircraft data
